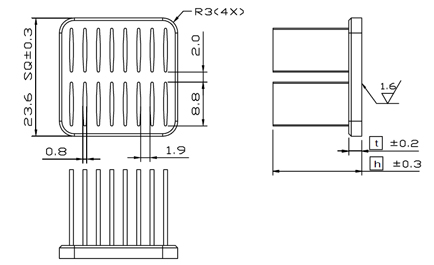

:: MWA24 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MWA 24-12 11.6 2.6 7.7 By request Clip , Tape MWA 24-15 14.6 2.6 8.5 By request Clip , Tape MWA 24-18 17.6 2.6 9.3 By request Clip , Tape MWA 24-21 20.6 2.6 10.1 By request Clip , Tape MWA 24-23 22.6 2.6 10.6 By request Clip , Tape MWA 24-28 27.6 2.6 11.9 By request Clip , Tape MWA 24-33 32.6 2.6 13.2 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MWA24-12 indicate 24x24mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

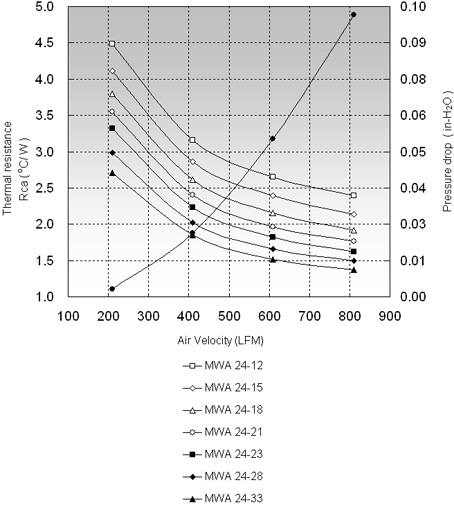

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MWA 24-12 4.49 3.16 2.65 MWA 24-15 4.12 2.86 2.39 MWA 24-18 3.80 2.62 2.15 MWA 24-21 3.55 2.41 1.97 MWA 24-23 3.32 2.26 1.86 MWA 24-28 2.98 2.02 1.66 MWA 24-33 2.71 1.80 1.51
