:: MWA17 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MWA 17-11 10.7 1.7 3.9 By request Clip , Tape MWA 17-14 13.7 1.7 4.5 By request Clip , Tape MWA 17-17 16.7 1.7 5.0 By request Clip , Tape MWA 17-20 19.7 1.7 5.6 By request Clip , Tape MWA 17-22 21.7 1.7 6.0 By request Clip , Tape MWA 17-27 26.7 1.7 7.0 By request Clip , Tape MWA 17-32 31.7 1.7 8.0 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MWA17-11 indicate 17x17mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

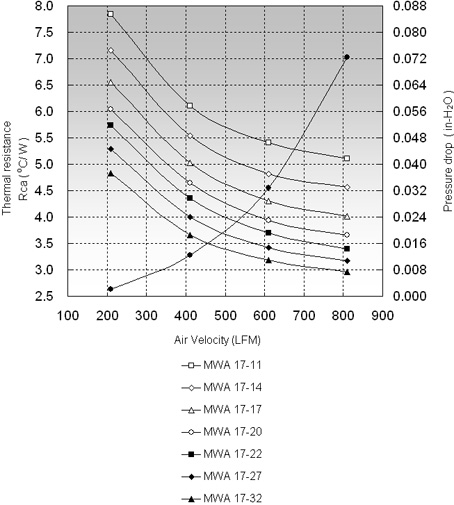

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MWA 17-11 7.84 6.10 5.43 MWA 17-14 7.16 5.54 4.87 MWA 17-17 6.55 4.93 4.31 MWA 17-20 6.04 4.56 3.93 MWA 17-22 5.74 4.25 3.69 MWA 17-27 5.11 3.80 3.41 MWA 17-32 4.83 3.61 3.18
