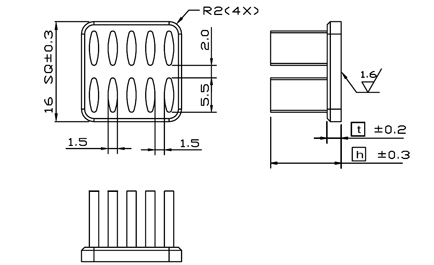

:: MWA16 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MWA 16-11 11.3 2.3 3.5 By request Clip , Tape MWA 16-14 14.3 2.3 4.0 By request Clip , Tape MWA 16-17 17.3 2.3 4.5 By request Clip , Tape MWA 16-20 20.3 2.3 5.1 By request Clip , Tape MWA 16-22 22.3 2.3 5.4 By request Clip , Tape MWA 16-27 27.3 2.3 6.3 By request Clip , Tape MWA 16-32 32.3 2.3 7.2 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MWA16-11 indicate 16x16mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

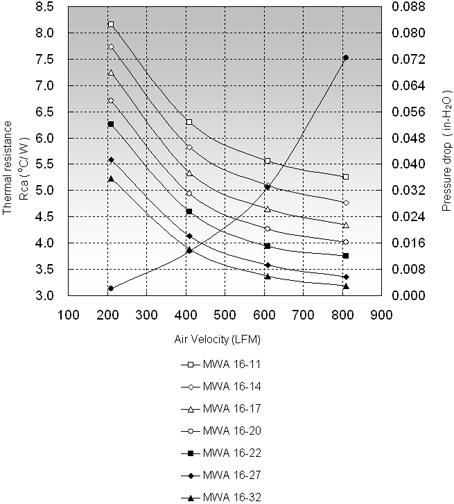

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MWA 16-11 8.16 6.30 5.57 MWA 16-14 7.73 5.80 5.09 MWA 16-17 7.25 5.34 4.65 MWA 16-20 6.70 4.94 4.27 MWA 16-22 6.26 4.59 3.94 MWA 16-27 5.58 4.13 3.58 MWA 16-32 5.23 3.89 3.37
