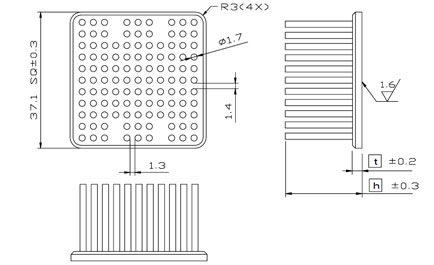

:: MPCA37.5 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MPCA 37.5-12 11.6 2.6 55.1 By request Clip , Tape MPCA 37.5-15 14.6 2.6 62.0 By request Clip , Tape MPCA 37.5-18 17.6 2.6 68.8 By request Clip , Tape MPCA 37.5-21 20.6 2.6 75.7 By request Clip , Tape MPCA 37.5-23 22.6 2.6 80.3 By request Clip , Tape MPCA 37.5-28 27.6 2.6 91.7 By request Clip , Tape MPCA 37.5-33 32.6 2.6 103.1 By request Clip , Tape

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number MPCA37.5-12 indicate 37.5×37.5mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

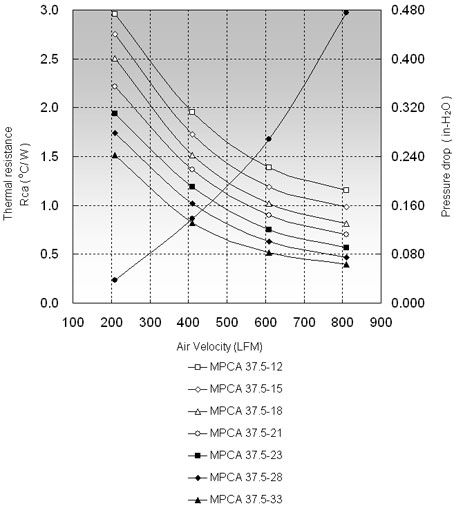

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPCA 37.5-12 3.34 1.95 1.39 MPCA 37.5-15 3.09 1.73 1.19 MPCA 37.5-18 2.81 1.51 0.98 MPCA 37.5-21 2.56 1.30 0.85 MPCA 37.5-23 2.30 1.15 0.74 MPCA 37.5-28 2.03 0.95 0.61 MPCA 37.5-33 1.82 0.82 0.52
