:: MPCA31 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
MPCA 31-12 11.6 2.6 34.1 By request Clip , Tape
MPCA 31-15 14.6 2.6 37.5 By request Clip , Tape
MPCA 31-18 17.6 2.6 40.9 By request Clip , Tape
MPCA 31-21 20.6 2.6 44.3 By request Clip , Tape
MPCA 31-23 22.6 2.6 46.5 By request Clip , Tape
MPCA 31-28 27.6 2.6 52.2 By request Clip , Tape
MPCA 31-33 32.6 2.6 57.9 By request Clip , Tape


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:

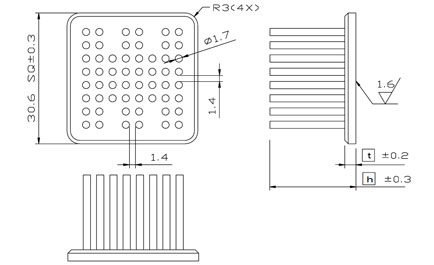

Model number MPCA31-12 indicate 31x31mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

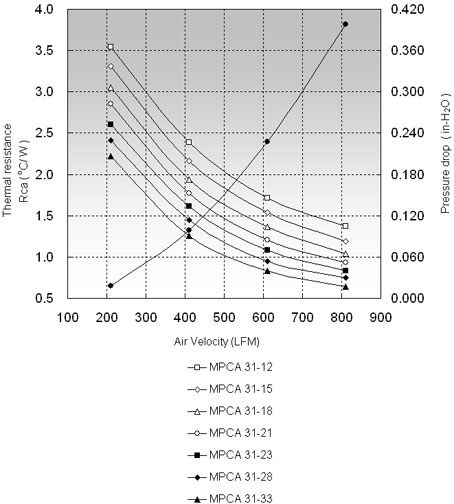

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MPCA 31-12 3.55 2.39 1.80
MPCA 31-15 3.31 2.16 1.54
MPCA 31-18 3.06 1.94 1.37
MPCA 31-21 2.85 1.77 1.21
MPCA 31-23 2.60 1.61 1.07
MPCA 31-28 2.42 1.45 0.95
MPCA 31-33 2.22 1.26 0.83
