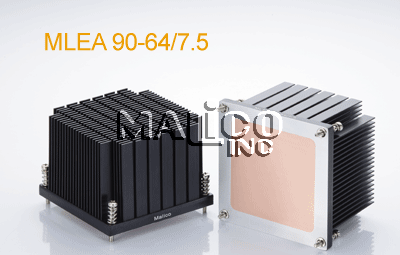

MLEA 90-64/7.5 – Malico Inc.

Home » CPU » MLEA 90-64/7.5 – Malico Inc.



1.Material : Aluminum 6063 ,Copper embedded
2.Finish : Black anodize (optional)

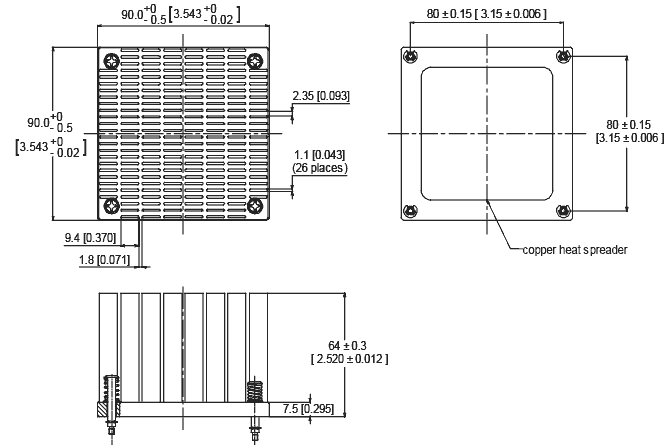

3.All dimensions are in millimeter (mm) [inch].





:: Attachment ::
Shoulder-Screw : steel , nickel plating

Spring : SWP-B , nickel plating
E-Retaining Ring : stainless steel

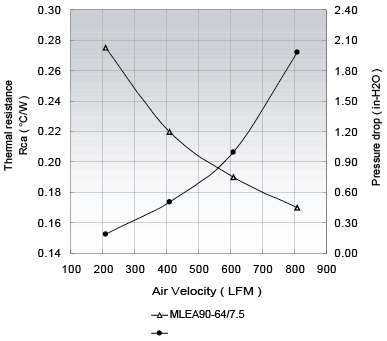

::Rth (oC/W)::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM) 800(LFM)
MLEA
90-64/7.5
0.275 0.220 0.190 0.170
