- MLEA 90-64/7.5

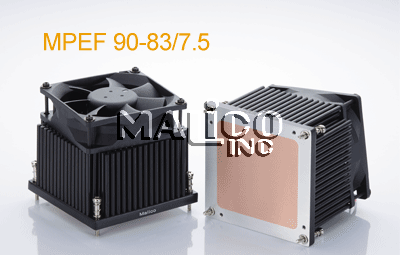

- MPEF 90-83/7.5
- MWEA 90-27/7.5
:: Fan specifcation
| Size (mm) |
Vendor | Voltage (VDC) |
Input Current (AMP) |
Speed(RPM) | Max. Air Flow |
Max. Air Pressure |
Nose (dBA) | Wire Lenght (mm) |
Housing |
| 80 x 80 x 25.4 | Delta | 12 | 0.34 | 4000 | 1.320 m3/min 46.62 CFM |
6.78 mm H2O 0.267 inch H2O |
40 | 300 ± 10 | Molex 5051-03 (or equivalent) |
| 1.Material | : | Aluminum 6063 ,Copper embedded |
| 2.Finish | : | Black anodize (optionnal) |
| 3.All dimensions are in millimeter (mm) [inch]. | ||

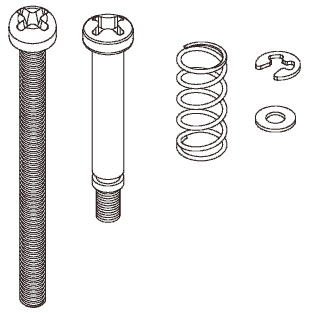

:: Attachment ::
| Shoulder-Screw | : | steel , nickel plating |
|
| Spring | : | SWP-B , nickel plating | |
| E-Retaining Ring | : | stainless steel | |
:: Rth (oC/W ) ::
| Thermal Resistance | : | 0.21(oC/W) |
| HeatSource(L*W) | : | 32X32mm |
