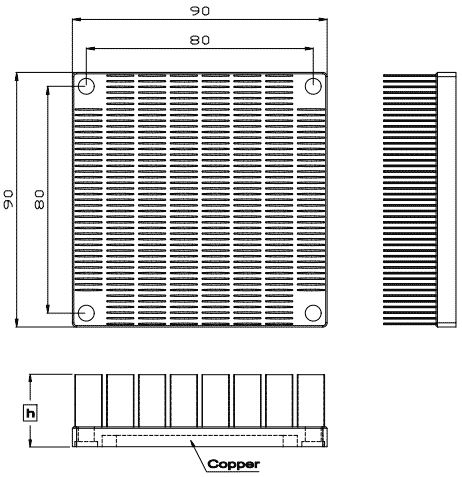

:: MW90 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MW 90-25 90 x 90 24.9 452 By request

Material : Aluminum 6063 with Copper Finish : Black anodize Remarks : Model number MW90-25 indicate 90x90mm is package footprint and 25 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

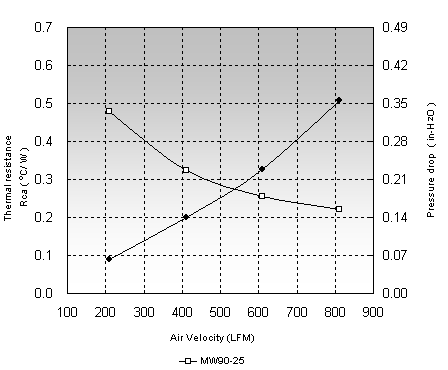

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MW 90-25 0.48  0.32 0.26
