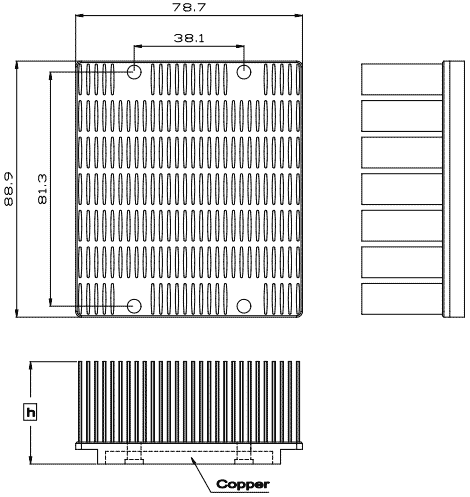

:: MW8979 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MW 8979-51 89 x 79 51  480 By request

Home » Passive Heat Sink » MW Series » MW8979 – Malico Inc. Material : Aluminum 6063 with Copper Finish : Nature anodize Remarks : Model number MW8979-51 indicate 89x79mm is package footprint and 51 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

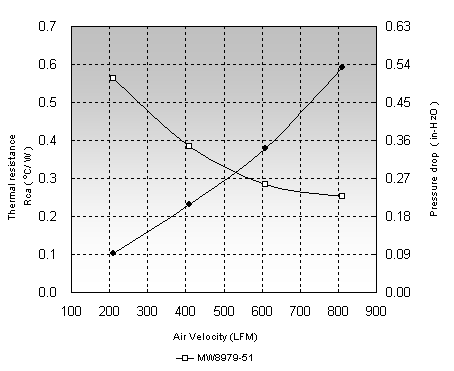

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MW 8979-51 0.56 0.38 0.28
