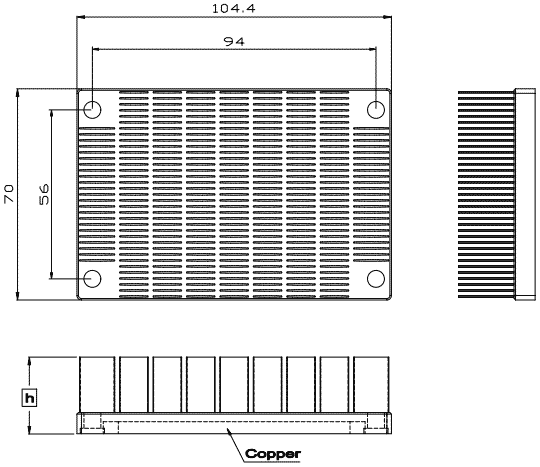

:: MW 70104 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MW 70104-25  70 x 104 25.4 318 By request

Home » Passive Heat Sink » MW Series » MW70104 – Malico Inc. Material : Aluminum 6063 with Copper Finish : Black anodize Remarks : Model number MW70104-25 indicate 70x104mm is package footprint and 25 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

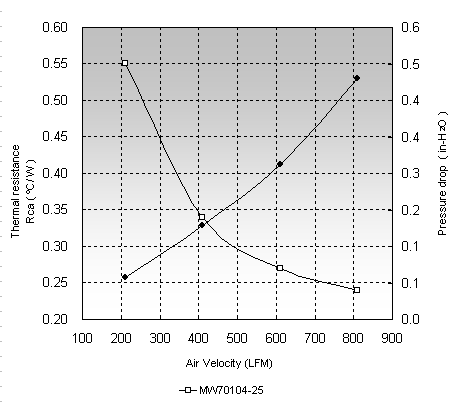

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MW 70104-25 0.55  0.34 0.27
