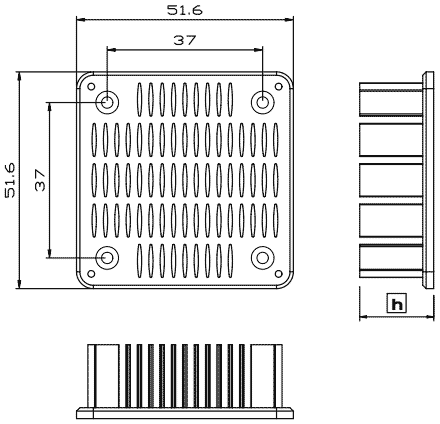

:: MW 52 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MW 52-12 52 x 52 11.6 30.5 By request
MW 52-15  52 x 52  14.6 34.5 By request
MW 52-18  52 x 52 17.6 38.5 By request
MW 52-21  52 x 52 20.6 42.5 By request
MW 52-23  52 x 52 22.6 45.0 By request
MW 52-28  52 x 52 27.6 52.0 By request
MW 52-33  52 x 52  32.6 58.8 By request


MW52



Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number MW52-12 indicate 52x52mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

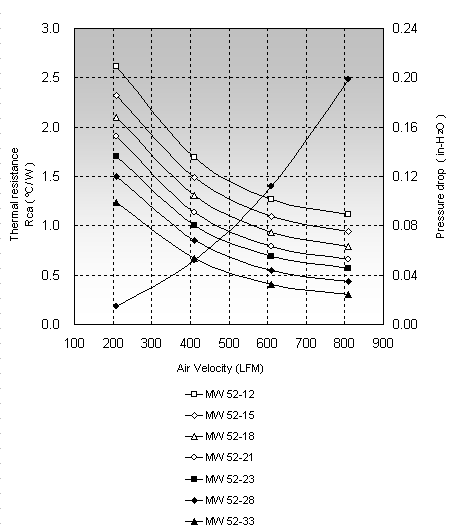

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MW 52-12 2.61 1.69 1.27
MW 52-15  2.32 1.49 1.10
MW 52-18 2.09 1.31 0.94
MW 52-21 1.91 1.14 0.79
MW 52-23 1.71 1.01 0.69
MW 52-28 1.50  0.85 0.55
MW 52-33 1.24  0.67  0.40
