:: MW40 :: Dimension

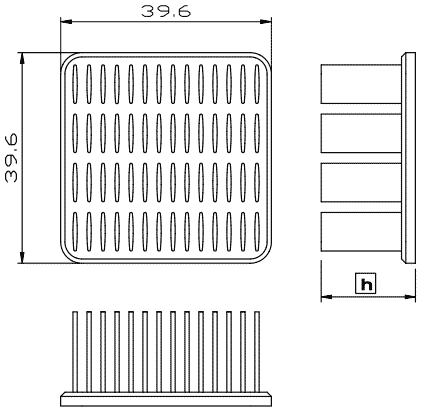

Model No. L x W (mm) Height (mm) Weight (grams) CAD MW 40-12 40 x 40 11.6 17.5 By request MW 40-15 40 x 40 14.6 18.8 By request MW 40-18 40 x 40 17.6 21.0 By request MW 40-21 40 x 40 20.6 23.2 By request MW 40-23 40 x 40 22.6 24.7 By request MW 40-28 40 x 40 27.6 28.5 By request MW 40-33 40 x 40 32.6 32.2 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MW40-12 indicate 40x40mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

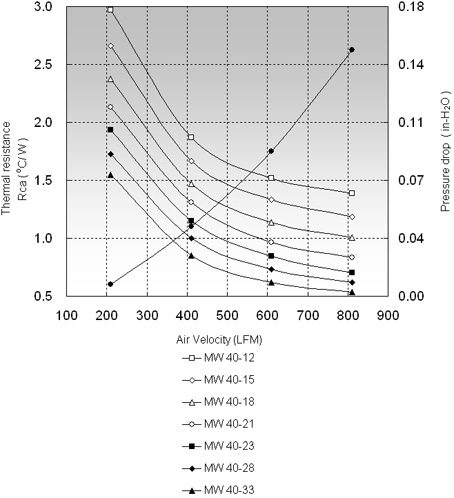

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MW 40-12 2.97 1.87 1.52 MW 40-15 2.66 1.67 1.33 MW 40-18 2.38 1.47 1.14 MW 40-21 2.13 1.31 0.97 MW 40-23 1.93 1.15 0.85 MW 40-28 1.73 1.00 0.73 MW 40-33 1.55 0.85 0.62
