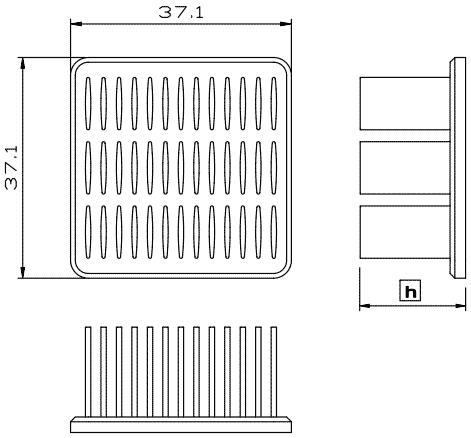

:: MW37.5 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MW 37.5-12 37.5 x 37.5 11.6 15.7 By request MW 37.5-15 37.5 x 37.5 14.6 17.8 By request MW 37.5-18 37.5 x 37.5 17.6 19.9 By request MW 37.5-21 37.5 x 37.5 20.6 21.9 By request MW 37.5-23 37.5 x 37.5 22.6 23.3 By request MW 37.5-28 37.5 x 37.5 27.6 26.8 By request MW 37.5-33 37.5 x 37.5 32.6 30.2 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MW37.5-12 indicate 37.5×37.5mm is package footprint and 12mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

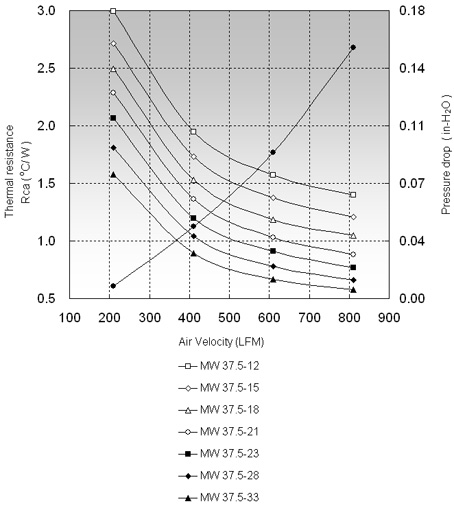

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MW 37.5-12 2.99 1.95 1.57 MW 37.5-15 2.72 1.73 1.37 MW 37.5-18 2.49 1.53 1.18 MW 37.5-21 2.29 1.36 1.03 MW 37.5-23 2.06 1.20 0.91 MW 37.5-28 1.81 1.04 0.78 MW 37.5-33 1.58 0.90 0.67
