:: MW34 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MW34-12 34 x 34 11.6 10.8 By request MW34-15 34 x 34 14.6 11.9 By request MW34-18 34 x 34 17.6 13.1 By request MW34-21 34 x 34 20.6 14.3 By request MW34-23 34 x 34 22.6 15.0 By request MW34-28 34 x 34 27.6 17.0 By request MW34-33 34 x 34 32.6 18.9 By request

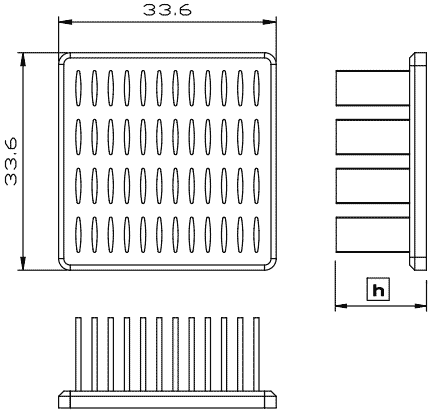

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MW34-12 indicate 34x34mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

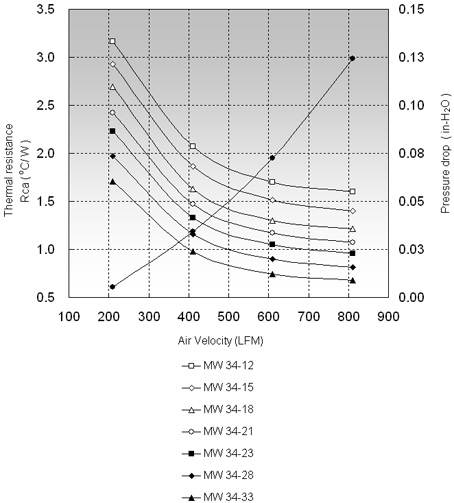

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MW34-12 3.16 2.07 1.70 MW34-15 2.93 1.86 1.51 MW34-18 2.69 1.63 1.30 MW34-21 2.42 1.47 1.17 MW34-23 2.23 1.33 1.05 MW34-28 1.97 1.16 0.90 MW34-33 1.71 0.98 0.74
