:: MW29 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MW 29-12 29 x 29 11.6 8.4 By request MW 29-15 29 x 29 14.6 9.3 By request MW 29-18 29 x 29 17.6 10.2 By request MW 29-21 29 x 29 20.6 11.1 By request MW 29-23 29 x 29 22.6 11.7 By request MW 29-28 29 x 29 27.6 13.2 By request MW 29-33 29 x 29 32.6 14.8 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MW29-12 indicate 29x29mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

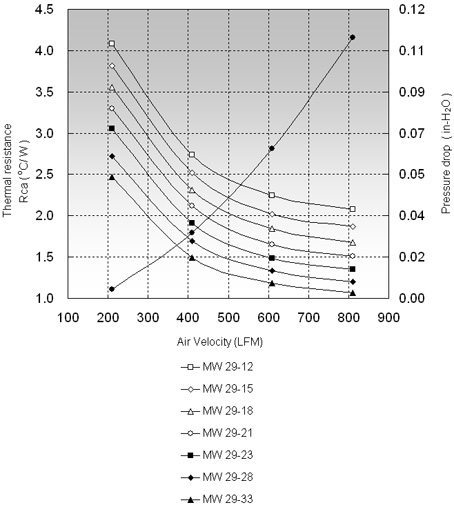

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MW 29-12 4.09 2.74 2.25 MW 29-15 3.81 2.52 2.02 MW 29-18 3.56 2.31 1.84 MW 29-21 3.30 2.12 1.65 MW 29-23 3.06 1.91 1.49 MW 29-28 2.72 1.66 1.33 MW 29-33 2.47 1.49 1.18
