:: MW27 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MW 27-12 27 x 27 11.6 7.7 By request MW 27-15 27 x 27 14.6 8.7 By request MW 27-18 27 x 27 17.6 9.7 By request MW 27-21 27 x 27 20.6 10.6 By request MW 27-23 27 x 27 22.6 11.3 By request MW 27-28 27 x 27 27.6 12.9 By request MW 27-33 27 x 27 32.6 14.5 By request

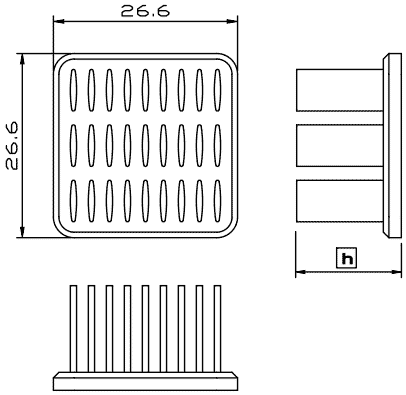

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MW27-12 indicate 27x27mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

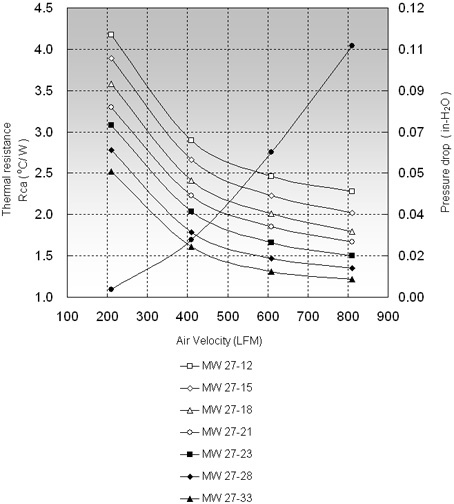

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MW 27-12 4.17 2.90 2.46 MW 27-15 3.89 2.66 2.23 MW 27-18 3.59 2.42 2.01 MW 27-21 3.30 2.23 1.85 MW 27-23 3.08 2.04 1.66 MW 27-28 2.78 1.78 1.47 MW 27-33 2.52 1.61 1.31
