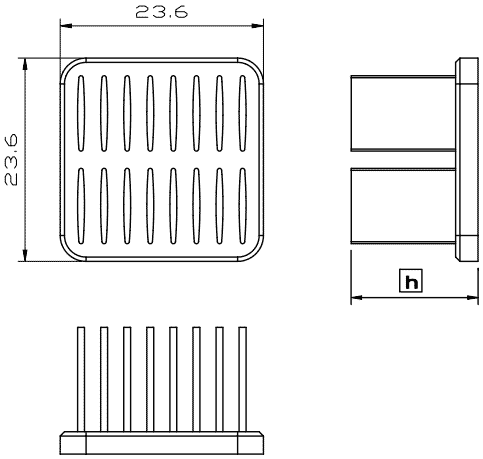

:: MW24 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MW 24-12 24 x 24 11.6 6.1 By request MW 24-15 24 x 24 14.6 6.9 By request MW 24-18 24 x 24 17.6 7.7 By request MW 24-21 24 x 24 20.6 8.5 By request MW 24-23 24 x 24 22.6 9.0 By request MW 24-28 24 x 24 27.6 10.3 By request MW 24-33 24 x 24 32.6 11.6 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MW24-12 indicate 24x24mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

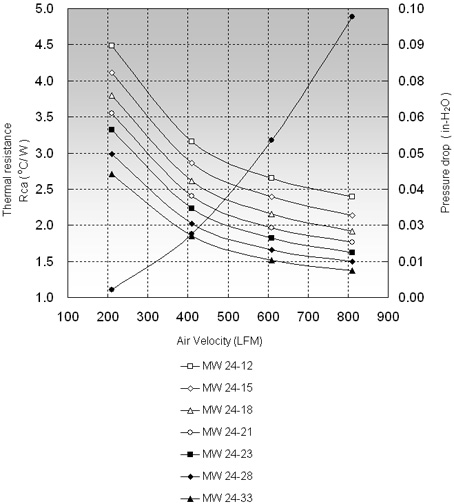

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MW 24-12 4.49 3.16 2.65 MW 24-15 4.12 2.86 2.39 MW 24-18 3.80 2.62 2.15 MW 24-21 3.55 2.41 1.97 MW 24-23 3.32 2.23 1.82 MW 24-28 2.98 2.02 1.66 MW 24-33 2.71 1.85 1.51
