:: MW19 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MW 19-12 19 x 19 11.6 3.4 By request
MW 19-15 19 x 19 14.6 3.7 By request
MW 19-18 19 x 19 17.6 4.0 By request
MW 19-21 19 x 19 20.6 4.3 By request
MW 19-23 19 x 19 22.6 4.5 By request
MW 19-28 19 x 19 27.6 5.1 By request
MW 19-33 19 x 19 32.6 5.6 By request


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:

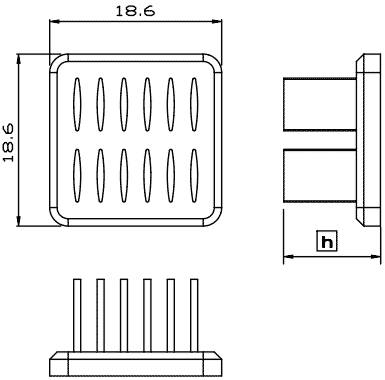

Model number MW19-12 indicate 19x19mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

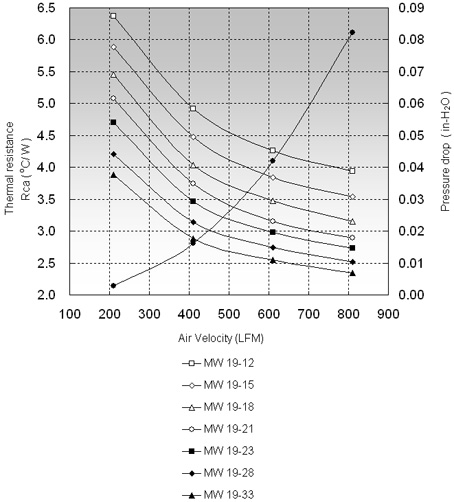

Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MW 19-12 6.37 4.92 4.26
MW 19-15 5.89 4.48 3.84
MW 19-18 5.45 4.03 3.48
MW 19-21 5.08 3.74 3.15
MW 19-23 4.70 3.46 2.98
MW 19-28 4.21 3.15 2.74
MW 19-33 3.88 2.88 2.54
