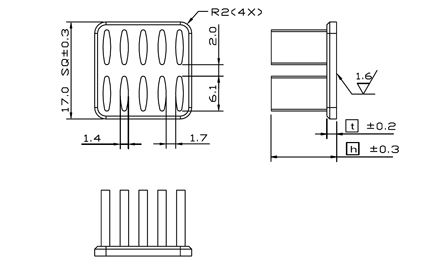

:: MW17 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MW 17-11 17 x17 10.7 3.1 By request
MW 17-14 17 x17 13.7 3.7 By request
MW 17-17 17 x17 16.7 4.2 By request
MW 17-20 17 x17 19.7 4.8 By request
MW 17-22 17 x17 21.7 5.2 By request
MW 17-27 17 x17 26.7 6.2 By request
MW 17-32 17 x17 31.7 7.2 By request




Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number MW17-11 indicate 17x17mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

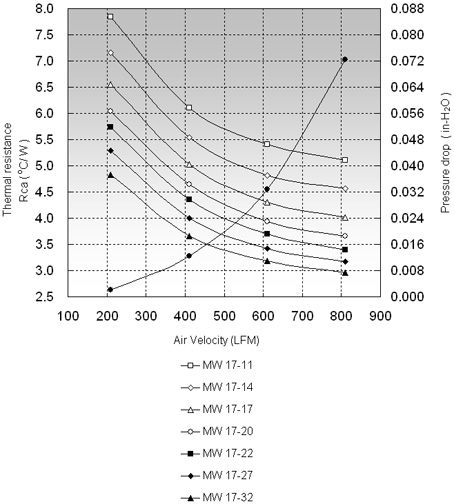

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MW 17-11 7.84 6.10 5.43
MW 17-14 7.16 5.54 4.82
MW 17-17 6.55 5.03 4.31
MW 17-20 6.04 4.64 3.93
MW 17-22 5.74 4.36 3.69
MW 17-27 5.29 4.00 3.41
MW 17-32 4.83 3.66 3.18
