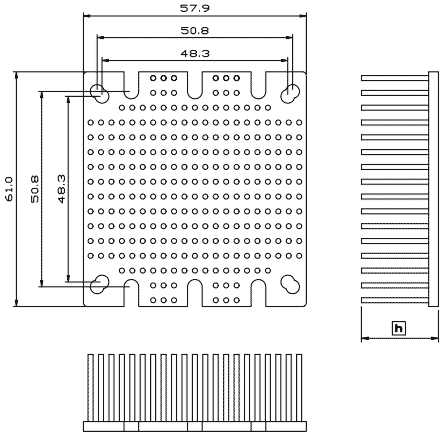

:: MPC5861 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MPC 5861-10  58 x 61 10 100.00 By request
MPC 5861-20  58 x 61 20 134.00 By request
MPC 5861-25  58 x 61 25 151.00 By request
MPC5861
Material
 : Copper 1100
Finish
 : Anti-Oxidation
Remarks
 :
Model number MPC5861-10 indicate 58x61mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

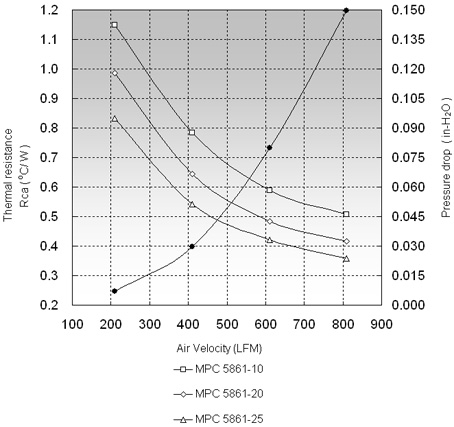

:: Rth ( oC/W ) ::
MPC5861
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MPC 5837-10 1.15  0.78  0.59
MPC 5837-20 0.99 0.64  0.48
MPC 5837-25  0.83  0.54  0.42
