:: MPC24 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MPC 24-12 24 x 24 11.6 19.5 By request MPC 24-15 24 x 24 14.6 21.7 By request MPC 24-18 24 x 24 17.6 23.9 By request MPC 24-21 24 x 24 20.6 26.1 By request MPC 24-23 24 x 24 22.6 27.6 By request MPC 24-28 24 x 24 27.6 31.3 By request MPC 24-33 24 x 24 32.6 34.9 By request

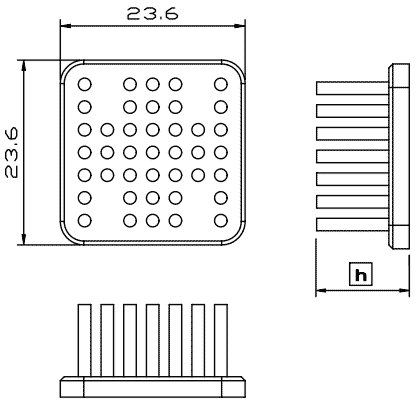

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number MPC24-12 indicate 24x24mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

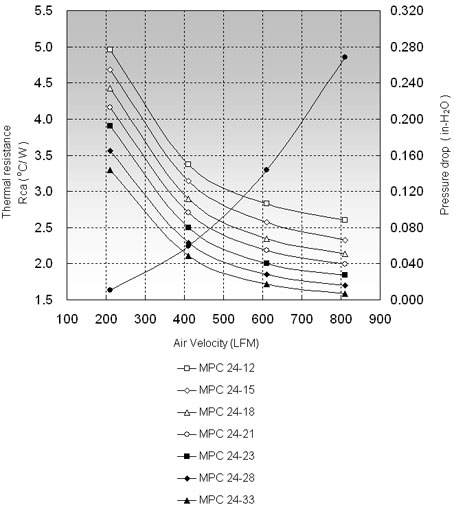

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPC 24-12 4.96 3.37 2.83 MPC 24-15 4.68 3.14 2.57 MPC 24-18 4.43 2.89 2.35 MPC 24-21 4.16 2.70 2.19 MPC 24-23 3.91 2.50 2.01 MPC 24-28 3.56 2.29 1.85 MPC 24-33 3.30 2.11 1.72
