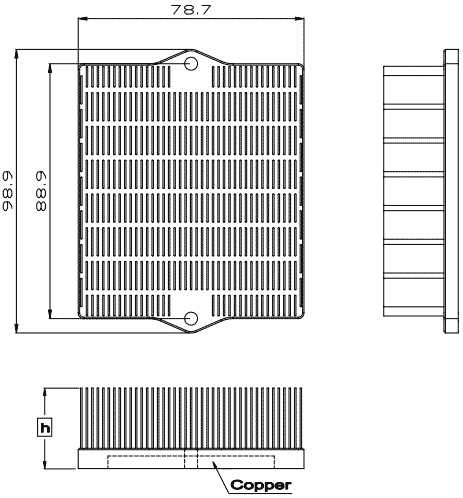

:: ML 9979 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
ML 9979-30  99 x 79 30  360 By request
Material
: Aluminum 6063 with Copper
Finish
: Nature anodize
Remarks
:
Model number ML9979-30 indicate 99x79mm is package footprint and 30 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

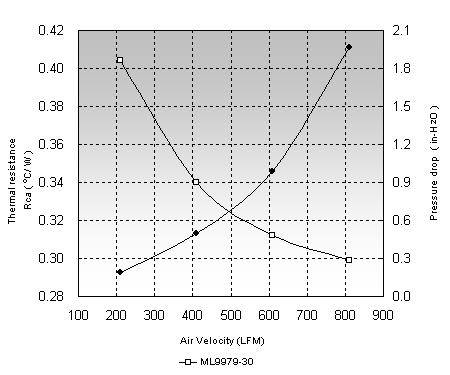

:: Rth (oC/W) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
ML 9979-30 0.40 0.34  0.31
