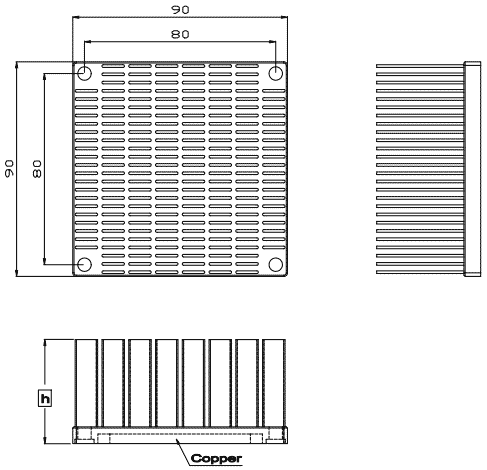

:: ML 90 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD ML 90-64 90 x 90 64  570 By request

Home » Passive Heat Sink » ML Series » ML90 – Malico Inc. Material : Aluminum 6063 Finish : Black anodize Remarks : Model number ML90-64 indicate 90x90mm is package footprint and 64 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

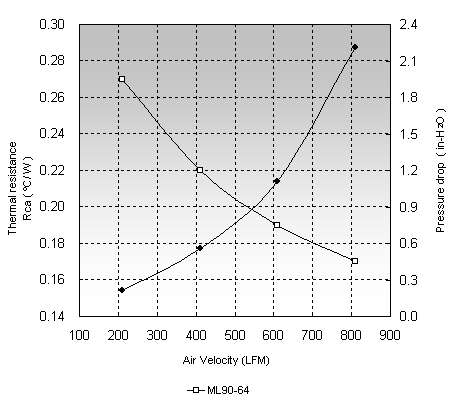

:: Rth (oC/W) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) ML 90-64 0.27  0.22 0.19
