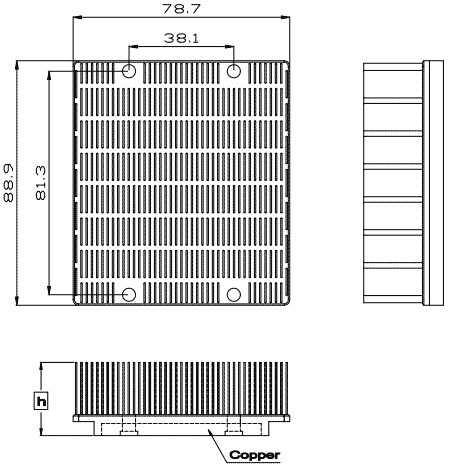

:: ML 8979 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD ML 8979-27 89 x 79 27 300 By request ML 8979-29  89 x 79 29  320 By request

Material : Aluminum 6063 with Copper Finish : Nature anodize Remarks : Model number ML8979-27 indicate 89x79mm is package footprint and 27 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

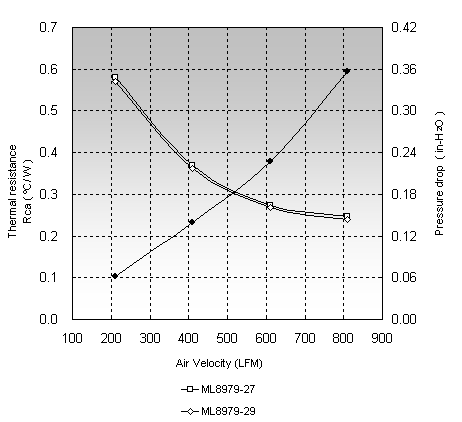

:: Rth (oC/W) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) ML 8979-27  0.58  0.37  0.27 ML 8979-29  0.57  0.36  0.27
