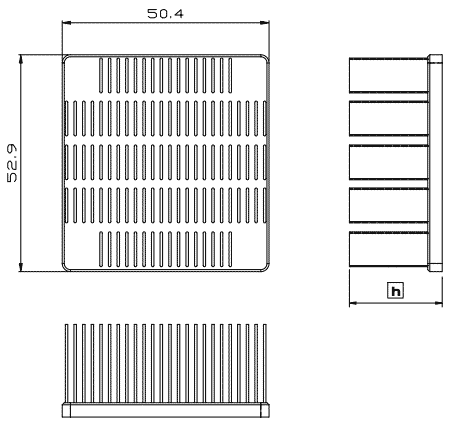

:: ML 5053 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD ML 5053-30 50 x 53  30  63 By request ML 5053-51  50 x 53  51  92 By request

Home » Passive Heat Sink » ML Series » ML5053 – Malico Inc. Material : Aluminum 6063 Finish : Nature anodize Remarks : Model number ML 5053-30 indicate 50 x 53mm is package footprint and 30 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

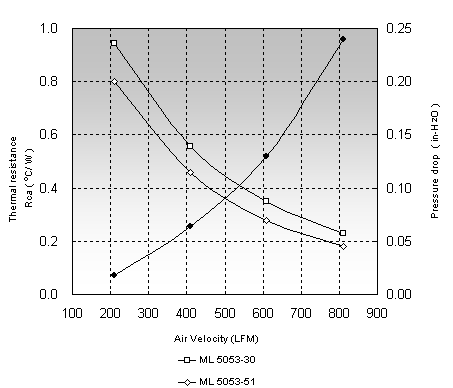

:: Rth (oC/W) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) ML 5053-30 0.95 0.56  0.35 ML 5053-51 0.80  0.46  0.28
