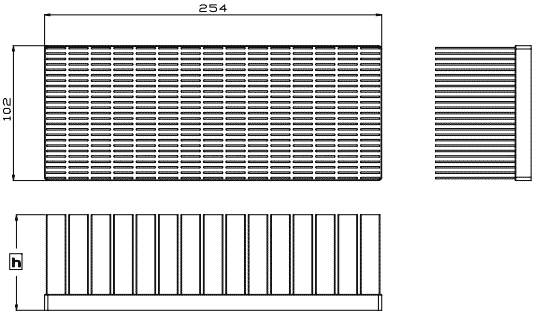

:: ML 254102 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD ML 254102-11  254 x 102 72 1,810 By request

Material : Aluminum 6063 Finish : Nature anodize Remarks : Model number ML254102-72 indicate 254x102mm is package footprint and 72 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth (oC/W) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) ML 254102-72 0.18 0.14  0.12
