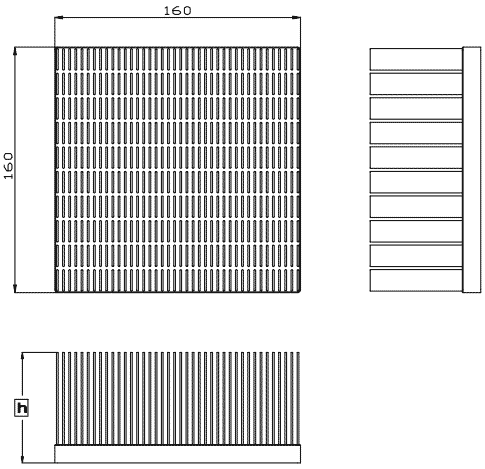

:: ML160 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD ML 160-72 160  x 160 72 1,810 By request

Material : Aluminum 6063 Finish : Nature anodize Remarks : Model number ML160-72 indicate 160x160mm is package footprint and 72 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

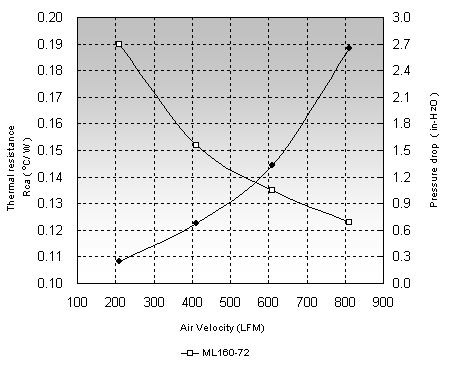

:: Rth (oC/W) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) ML 160-72 0.19 0.15 0.14
