:: ML15 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD ML 15-11 15 x 15 10.7 2.2 By request ML 15-14 15 x 15 13.7 2.6 By request ML 15-17 15 x 15 16.7 3.0 By request ML 15-20 15 x 15 19.7 3.3 By request ML 15-22 15 x 15 21.7 3.6 By request

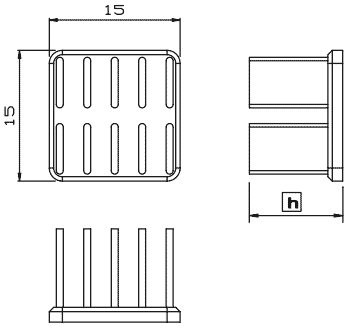

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number ML15-11 indicate 15x15mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

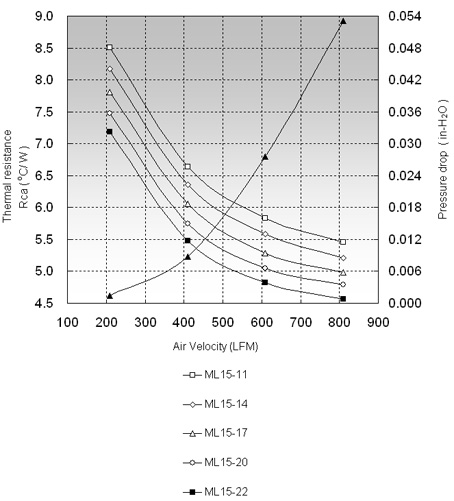

:: Rth (oC/W) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) 200(LFM) 400(LFM) 600(LFM) ML 15-11 8.51 6.64 5.84 ML 15-14 8.17 6.36 5.58 ML 15-17 7.81 6.06 5.28 ML 15-20 7.48 5.75 5.05 ML 15-22 7.18 5.48 4.82
