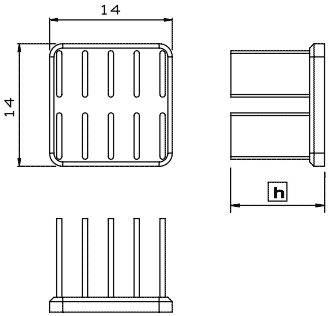

:: ML14 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD ML 14-11 14 x 14 10.7 1.7 By request ML 14-14 14 x 14 13.7 2.0 By request ML 14-17 14 x 14 16.7 2.2 By request ML 14-20 14 x 14 19.7 2.5 By request ML 14-22 14 x 14 21.7 2.7 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number ML14-11 indicate 14x14mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

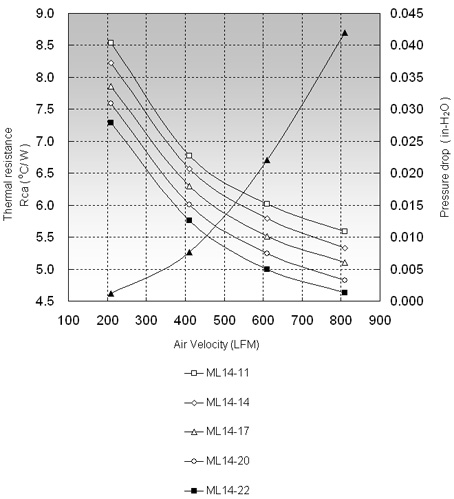

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) ML 14-11 8.54 6.77 6.02 ML 14-14 8.22 6.57 5.79 ML 14-17 7.86 6.30 5.51 ML 14-20 7.59 6.01 5.24 ML 14-22 7.29 5.76 5.00
