| Model No. |
L x W (mm) |
Height (mm) |
Weight (grams) |
CAD |
| MLF 60-06 |
60 x 60 |
6.3 |
33.4 |
By request |
| MLF 60-10 |
60 x 60 |
9.5 |
37.6 |
By request |
| MLF 60-13 |
60 x 60 |
12.7 |
42.2 |
By request |
|
Material
|
: |
Aluminum 1070 |
|
Finish
|
: |
Black anodize |
|
Remarks
|
: |

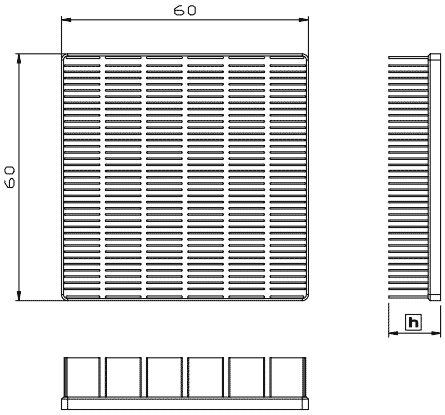

Model number MLF 60-06 indicate 60x60mm is heat sink footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension |

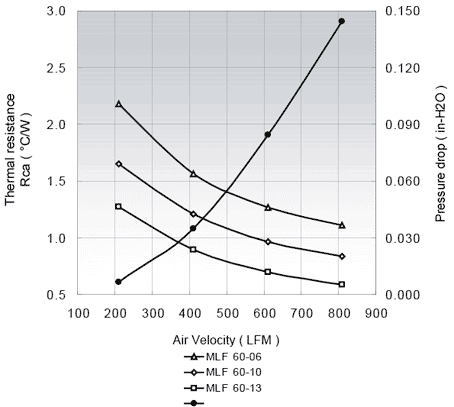

| :: Rth ( oC/W ) :: |
|
 |
|
Air Velocity / Rth ( oC/W ) |
|
200(LFM) |
400(LFM) |
600(LFM) |
| MLF 60-06 |
2.18 |
1.56 |
1.27 |
| MLF 60-10 |
1.65 |
1.21 |
0.97 |
| MLF 60-13 |
1.27 |
0.90 |
0.97 |
|
|
|
|
|
