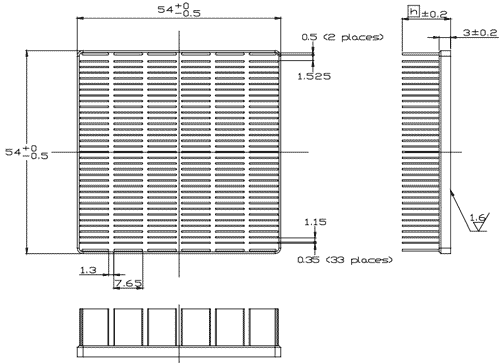

:: MLF 54 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MLF 54-06 54 x 54 6.3 27.4 By request MLF 54-10 54 x 54 9.5 31.6 By request MLF 54-13 54 x 54 12.7 35.4 By request

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLF 54-06 indicate 54x54mm is heat sink footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

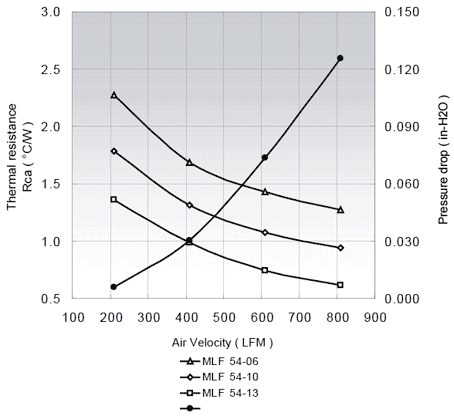

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLF 54-06 2.27 1.68 1.43 MLF 54-10 1.78 1.31 1.07 MLF 54-13 1.36 0.99 0.75
