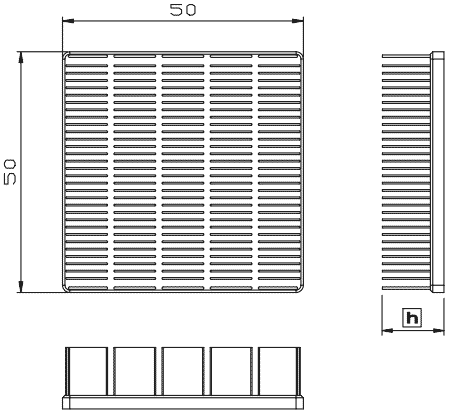

:: MLF 50 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MLF 50-06 50 x 50 6.3 22.6 By request MLF 50-10 50 x 50 9.5 26.2 By request MLF 50-13 50 x 50 12.7 29.4 By request

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLF 50-06 indicate 50x50mm is heat sink footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

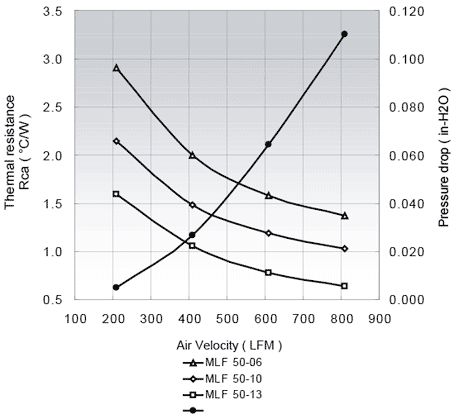

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLF 50-06 2.91 2.00 1.58 MLF 50-10 2.15 1.48 1.19 MLF 50-13 1.60 1.06 0.78
