:: MLF 48 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MLF 48-06 48 x 48 6.3 20.6 By request
MLF 48-10 48 x 48 9.5 24.2 By request
MLF 48-13 48 x 48 12.7 26.6 By request

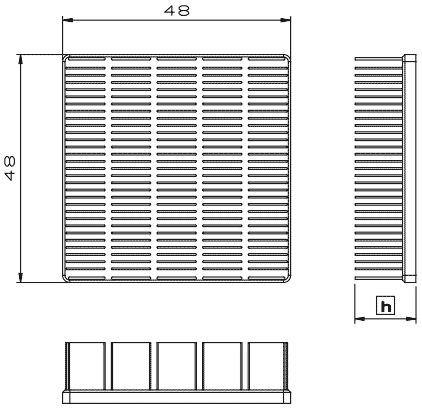

mlf48_d

Material
: Aluminum 1070
Finish
: Black anodize
Remarks
: Model number MLF 48-06 indicate 48x48mm is heat sink footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MLF 48-06 3.14 2.12 1.65
MLF 48-10 2.47 1.66 1.27
MLF 48-13 1.78 1.14 0.85
