MLF45 – Malico Inc.
Home » Passive Heat Sink » MLF series » MLF45 – Malico Inc. (Equivalent ALPHA Z45 heat sink series)
| :: MLF 45:: Dimension |
| Model No. |
L x W (mm) |
Height (mm) |
Weight (grams) |
CAD |
| MLF 45-06 |
45 x 45 |
6.3 |
15.3 |
By request |
| MLF 45-10 |
45 x 45 |
9.5 |
18.5 |
By request |
| MLF 45-13 |
45 x 45 |
12.7 |
21.6 |
By request |
|
|
|
|
Material
|
: |
Aluminum 1070 |
|
Finish
|
: |
Black anodize |
|
Remarks
|
: |

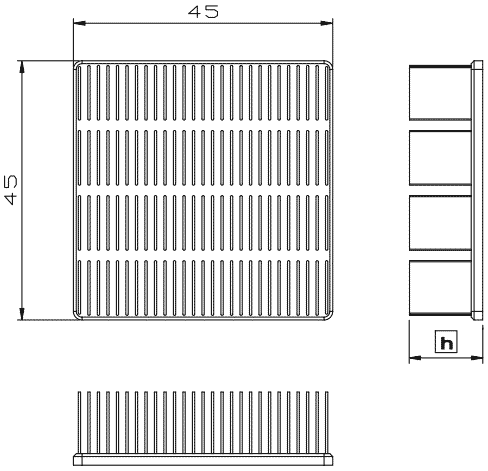

Model number MLF 45-06 indicate 45x45mm is heat sink footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension |
|

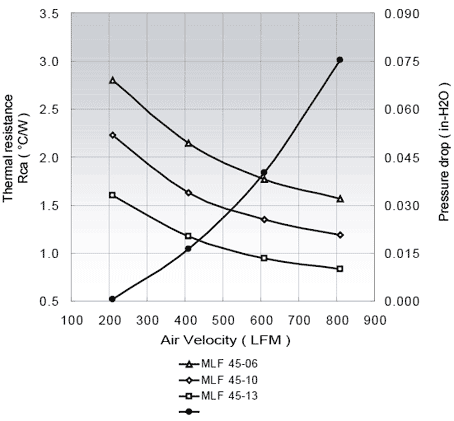

| :: Rth ( oC/W ) :: |
|
 |
|
Air Velocity / Rth ( oC/W ) |
|
200(LFM) |
400(LFM) |
600(LFM) |
| MLF 45-06 |
2.80 |
2.15 |
1.77 |
| MLF 45-10 |
2.23 |
1.63 |
1.35 |
| MLF 45-13 |
1.60 |
1.18 |
0.95 |
|
|
|
|
