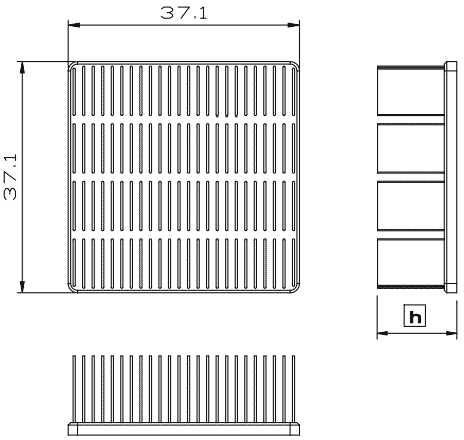

:: MLF 37.5 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD MLF 37.5-06 6.3 2.0 10.7 By request MLF 37.5-10 9.5 2.0 13.0 By request MLF 37.5-13 12.7 2.0 15.3 By request

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLF 37.5-06 indicate 37.5×37.5mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

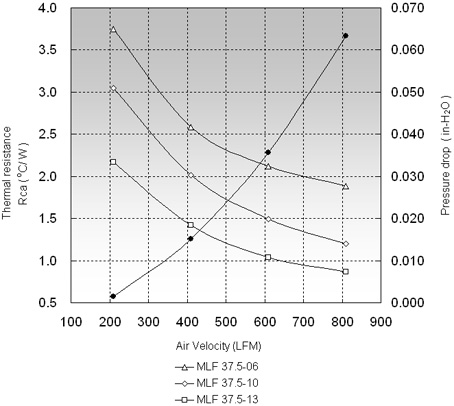

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLF 37.5-06 3.75 2.58 2.12 MLF 37.5-10 3.05 2.01 1.49 MLF 37.5-13 2.17 1.42 1.04
