:: MLF :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MLF 35-06 35 x 35 6.3 9.2 By request MLF 35-10 35 x 35 9.5 11.2 By request MLF 35-13 35 x 35 12.7 13.2 By request

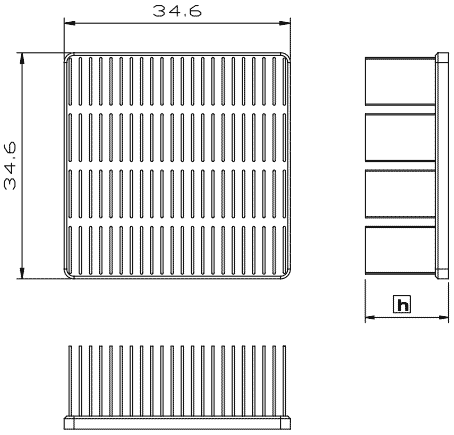

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLF 35-06 indicate 35x35mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

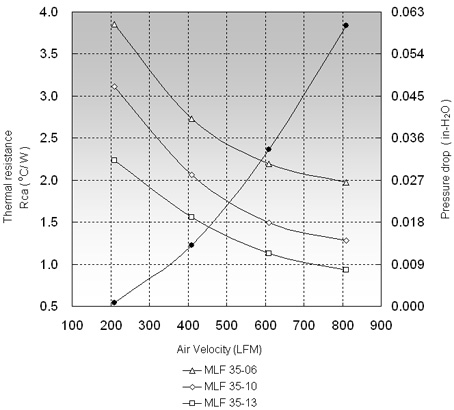

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLF 35-06 3.85 2.73 2.19 MLF 35-10 3.11 2.06 1.49 MLF 35-13 2.23 1.56 1.13
