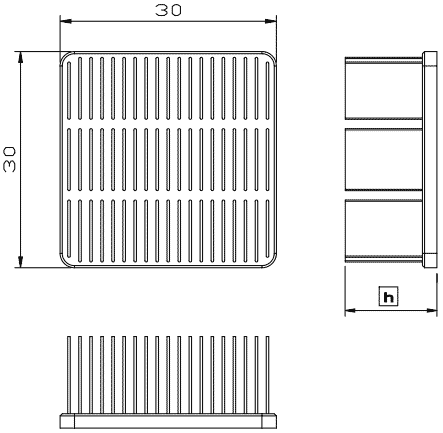

:: MLF :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MLF 30-06 30 x 30 6.3 7.0 By request MLF 30-10 30 x 30 9.5 8.5 By request MLF 30-13 30 x 30 12.7 10.0 By request

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLF 30-06 indicate 30x30mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

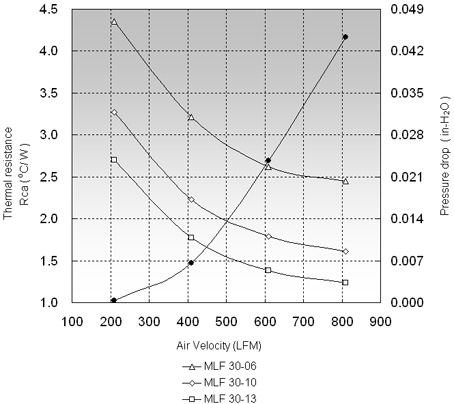

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLF 30-06 4.35 3.21 2.62 MLF 30-10 3.27 2.23 1.79 MLF 30-13 2.70 1.77 1.38
