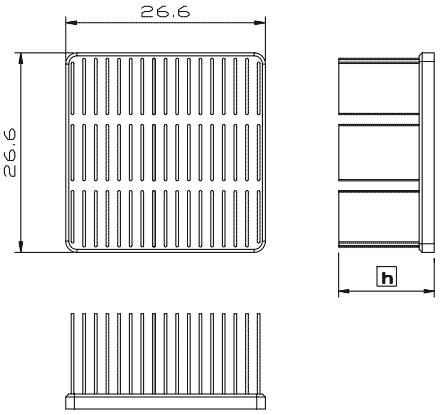

:: MLF :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MLF 27-06 27 x 27 6.3 5.5 By request MLF 27-10 27 x 27 9.5 6.6 By request MLF 27-13 27 x 27 12.7 7.8 By request

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLF 27-06 indicate 27x27mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

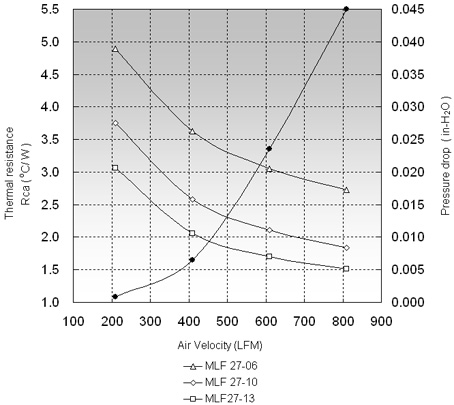

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLF 27-06 4.89 3.63 3.05 MLF 27-10 3.75 2.58 2.11 MLF 27-13 3.06 2.06 1.70
