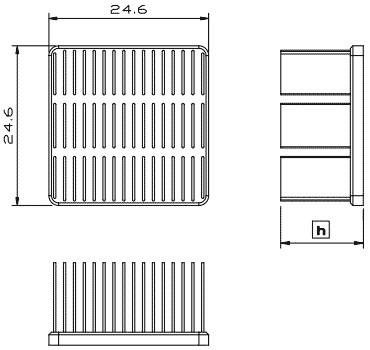

:: MLF :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MLF 25-06 25 x 25 6.3 4.7 By request MLF 25-10 25 x 25 9.5 5.7 By request MLF 25-13 25 x 25 12.7 6.7 By request

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLF 25-06 indicate 25x25mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLF 25-06 5.21 3.81 3.22 MLF 25-10 4.11 2.73 2.26 MLF 25-13 3.25 2.22 1.85
