MLF19 – Malico Inc.
Home » Passive Heat Sink » MLF series » MLF19 – Malico Inc. (Equivalent ALPHA Z19 heat sink series)
| :: MLF :: Dimension |
| Model No. |
L x W (mm) |
Height (mm) |
Weight (grams) |
CAD |
| MLF 19-06 |
19 x 19 |
6.3 |
2.7 |
By request |
| MLF 19-10 |
19 x 19 |
9.5 |
3.3 |
By request |
| MLF 19-13 |
19 x 19 |
12.7 |
3.9 |
By request |
|
|
|
|
Material
|
: |
Aluminum 1070 |
|
Finish
|
: |
Black anodize |
|
Remarks
|
: |

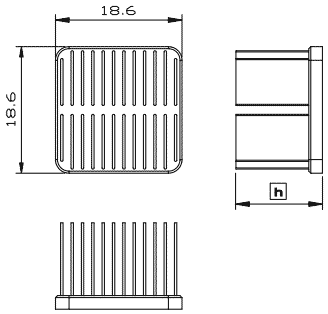

Model number MLF 19-06 indicate 19x19mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension |
|

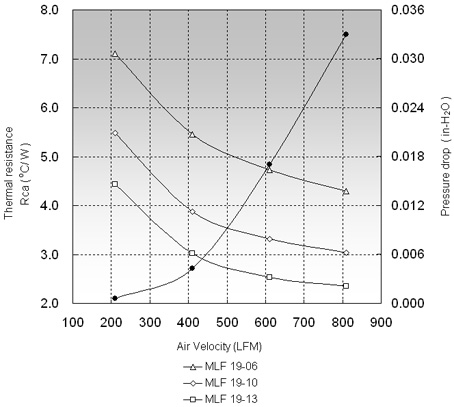

| :: Rth ( oC/W ) :: |
|
 |
|
Air Velocity / Rth ( oC/W ) |
|
200(LFM) |
400(LFM) |
600(LFM) |
| MLF 19-06 |
7.10 |
5.45 |
4.73 |
| MLF 19-10 |
5.48 |
3.87 |
3.31 |
| MLF 19-13 |
4.43 |
3.02 |
2.53 |
|
|
|
|
