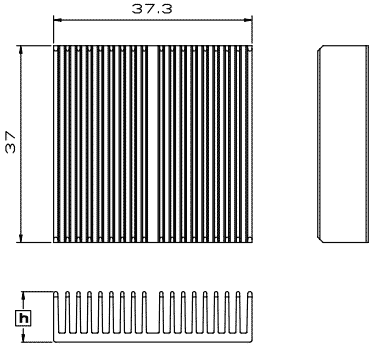

:: HC 37.5 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD HC 37.5-06 37.5 x 37.5 6.3 38.1 By request HC 37.5-10 37.5 x 37.5 9.5 49.9 By request

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number HC 37.5-06 indicate 37.5×37.5mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

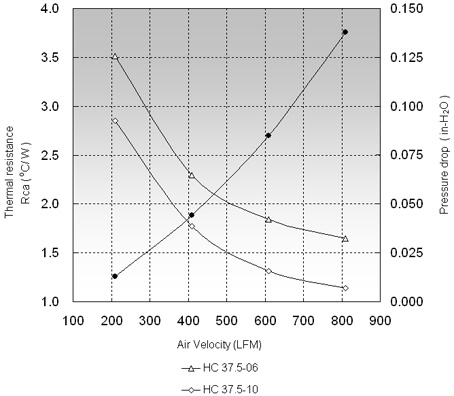

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HC 37.5-06 3.51 2.30 1.84 HC 37.5-10 2.85 1.77 1.31
