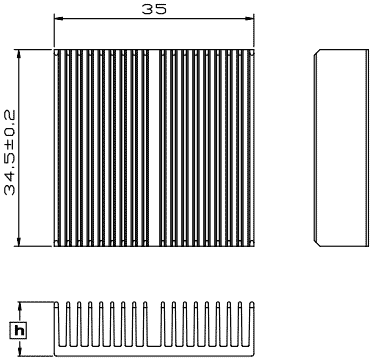

:: HC 35 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD HC 35-06 35 x 35 6.3 31.0 By request HC 35-10 35 x 35 9.5 40.8 By request

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number HC 35-06 indicate 35x35mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

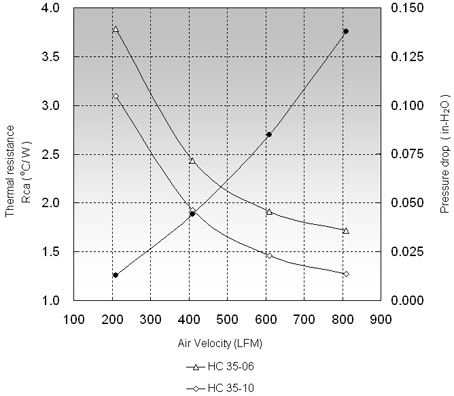

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HC 35-06 3.78 2.43 1.92 HC 35-10 3.10 1.93 1.46
