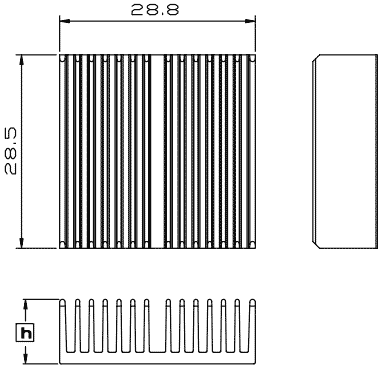

:: HC 29 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD HC 29-06 29 x 29 6.3 22.8 By request HC 29-10 29 x 29 9.5 29.8 By request

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number HC 29-06 indicate 29x29mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

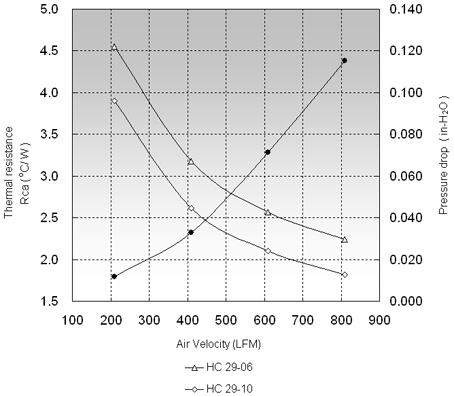

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HC 29-06 4.55 3.18 2.57 HC 29-10 3.90 2.61 2.11
