:: HC 27 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
HC 27-06 27 x 27 6.3 18.8 By request
HC 27-10 27 x 27 9.5 24.4 By request


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:

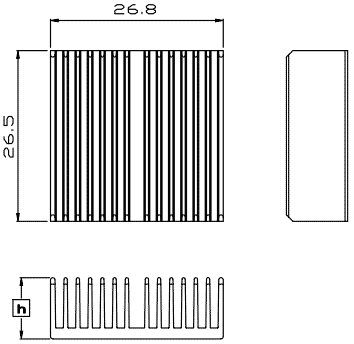

Model number HC 27-06 indicate 27x27mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

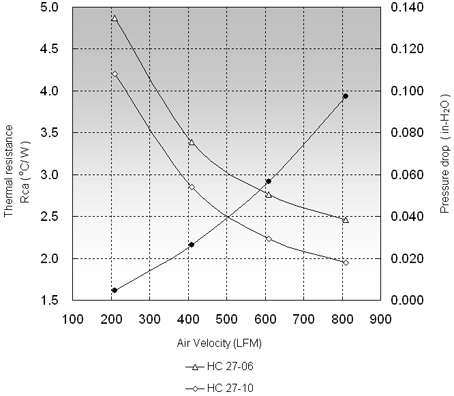

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HC 27-06 4.87 3.39 2.76
HC 27-10 4.20 2.85 2.24
