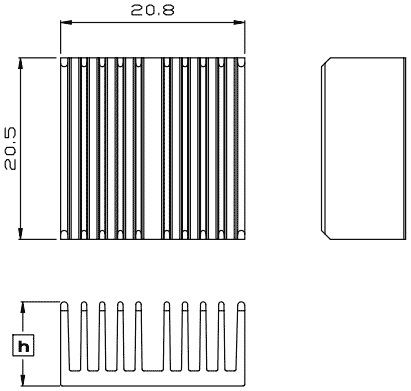

:: HC 21 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
HC 21-06 21 x 21 6.3 11.9 By request
HC 21-10 21 x 21 9.5 15.6 By request




Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:
Model number HC 21-06 indicate 21x21mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

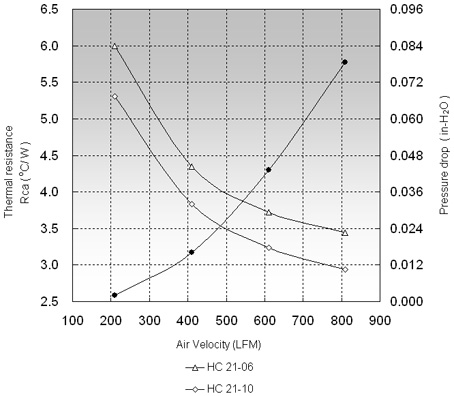

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HC 21-06 6.00 4.35 3.72
HC 21-10 5.31 3.84 3.24
