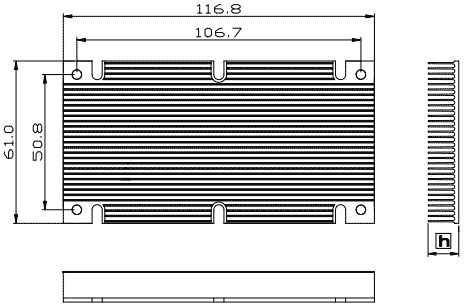

:: HC 11761 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD HC 11761-12 117 x 61 11.5 221 By request

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number HC 11761-12 indicate 117x61mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

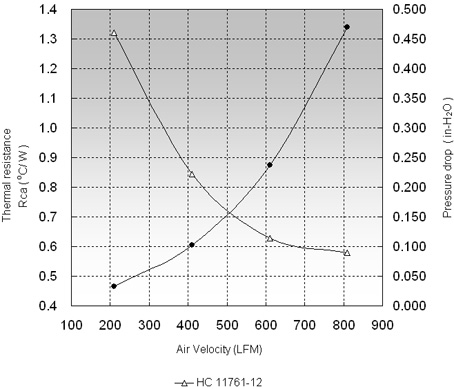

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) HC 11761-12 1.32 0.84 0.63
