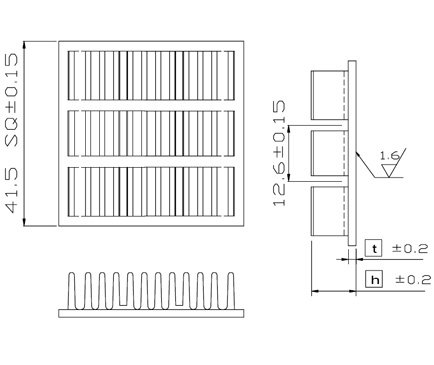

:: EX42.5 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	CAD
EX 42.5-10	10.0	1.7	21.0	By request

Material	:	Aluminum 6063
Finish	:	Black anodize
Remarks	:	Model number EX42.5-10 indicate 42.5×42.5mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

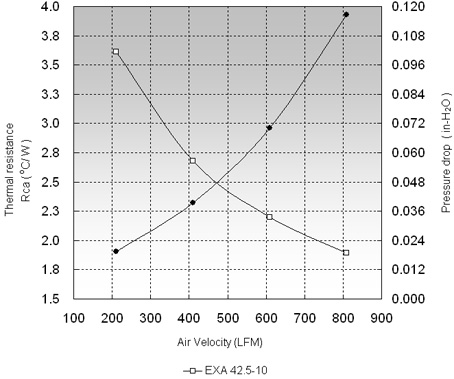

:: Rth (^oC/W ) ::

	Air Velocity / Rth (^oC/W )
	200(LFM)	400(LFM)	600(LFM)
EX 42.5-10	3.62	2.68	2.20

Interface material : 0.80 W/mk
