EX40

:: EX40 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
EX 40-10 40 x 40 9.8 17.0 By request



Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:

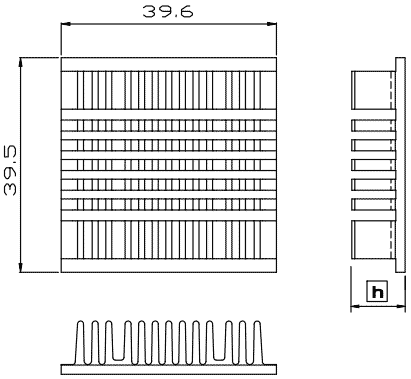

Model number EX40-10 indicate 40x40mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension


:: Rth ( oC/W ) ::
  Air Velocity / Rth ( oC/W )
  200(LFM) 400(LFM) 600(LFM)
EX 40-10 3.95 2.81 2.42

Interface material : 0.80 W/mk
