EX25

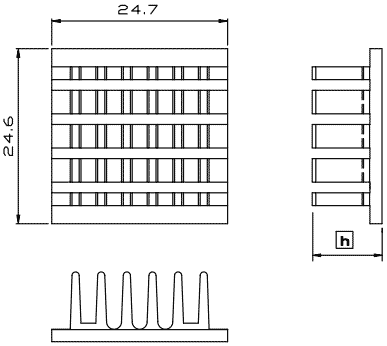

:: EX25 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD EX 25-10 25 x 25 9.8 6.5 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number EX25-10 indicate 25x25mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) EX 25-10 8.70 6.50 5.50
