EX21 – Malico Inc.

:: EX21 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
EX 21-10 21 x 21 9.7 3.4 By request
Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:

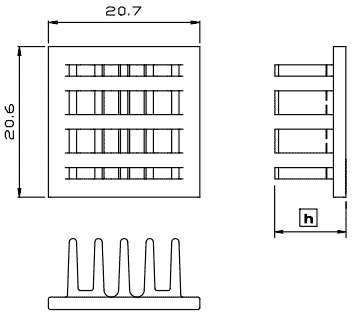

Model number EX21-10 indicate 21x21mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
EX 21-10 12.23 9.70 8.35

Interface material : 0.80 W/mk
